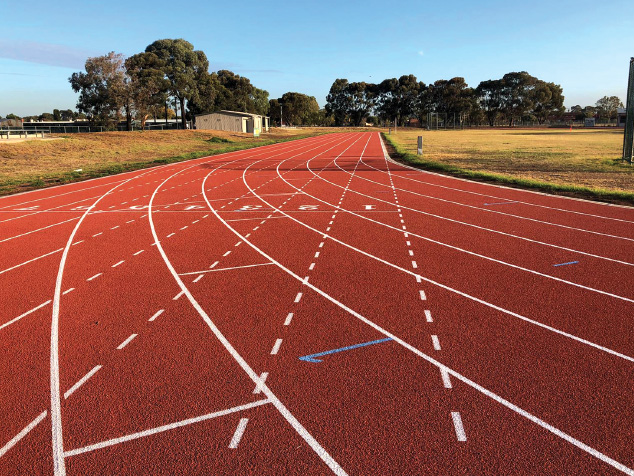

A premium EPDM rubber granule solution engineered for high-performance athletic tracks. Certified by World Athletics™, it meets the highest global standards for competitive and elite-level track installations. Designed for durability, spike resistance, and superior shock absorption, Ecolastic® PACE ensures a seamless, safe, and resilient surface for athletes. Available in a vibrant range of UV-stable colors, it offers both aesthetic appeal and long-lasting performance.
| Category | Property | Value / Description | Test Method / Notes |
|---|---|---|---|
| Material Description |
Base Polymer | EPDM (Ethylene Propylene Diene Terpolymer) |
- |
| Granule Shape | Angular cut | - | |
| Granule Size | 1.5 – 4.0 mm | - | |
| Material Properties |
Tensile Strength | > 4.0 MPa | ASTM D412 |
| Elongation | > 400% | ASTM D412 | |
| Hardness | 60 ± 5 Shore A | ASTM D2240 | |
| Specific Gravity | 1.65 ± 0.02 g/cm³ | ISO 2781 | |
| Bulk Density | 700 ± 20 g/L | ASTM D1895 | |
| Binder Usage | Binder Consumption | Depends on system type | See mixing ratios below |
| Mixing Ratio |
◦ Sandwich: 100:40 ◦ Spray Coat: 50:55 ◦ Full-PUR: 100:40 |
EPDM:Binder by weight | |
| Packaging | Type | HDPE plastic bags | - |
| Weight | 25 kg | - | |
| Shelf Life | 2 years | Store between 10°C and 30°C | |
| System Types | Sandwich, Spray Coat, Full-PUR | Broadcast granules immediately after topcoat | |
| Storage Instructions |
Conditions | Dry and cool (10°C to 30°C), no direct sunlight or heat exposure | Prevent agglomeration |
| Safety | SDS Available | Yes, from Fairmont Industries | Request recommended before use |
